Yaskawa Motoman GP Series Robots: Handling & Mounting
GP280

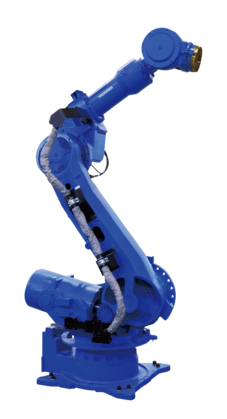

The GP280 6-axis handling robot has a 280kg payload and a maximum reach of 2,446 mm, suited for a large variety of robotic applications.
Overview
The Yaskawa Motoman GP series is a portfolio of multi-purpose, 6-axis industrial robots designed for a wide range of applications, including handling and mounting, with payload capacities spanning from 4 to 600 kg. A wide variety of payload/reach combinations, including versions with high IP protection rates, food-grade grease, or special purpose paint finishes, makes these GP Series robot models perfect candidates for many kinds of automation challenges, such as assembly, material handling, machine tending, material removal, and quality inspection.
Key Benefits of GP Series Robots:
- Increased Productivity: Automate repetitive tasks for faster throughput and higher efficiency.
- Enhanced Precision: Achieve consistent and accurate performance for improved product quality.
- Improved Safety: Reduce workplace hazards by automating dangerous or strenuous jobs.
- Maximum Flexibility: Adapt to changing production needs with versatile payload and reach options.
Technical Details
- Number of Axis
- 6
- Payload
- 280 kg
- Max Working Range
- 2446 mm
- Repeatability
- 0.05 mm
- Weight
- 1300 kg
- Power Supply
- 5 kVA
- Maximum Speed S Axis
- 90 °/s
- Maximum Speed L Axis
- 80 °/s
- Maximum Speed U Axis
- 90 °/s
- Maximum Speed R Axis
- 115 °/s
- Maximum Speed B Axis
- 110 °/s
- Maximum Speed T Axis
- 190 °/s
- Mounting Options
- Floor
- Further Specifications
- x No
Downloads
| Name | |||
|
Flyer Robot GP280
Handling and General Applications with the GP-Series Data sheet | English |
Data sheet | English | |
|
Flyer Robot GP280
Handling & Allgemeine Applikationen mit der GP-Serie Data sheet | German |
Data sheet | German | |
| GP280 2D CAD/CAE | | CAD/CAE | ||
| GP280 3D CAD/CAE | | CAD/CAE | ||
| Brochure GP Series Brochures | English | Brochures | English | |
| Broschüre GP-Serie Brochures | German | Brochures | German |
