Yaskawa Motoman GP Series Robots: Handling & Mounting

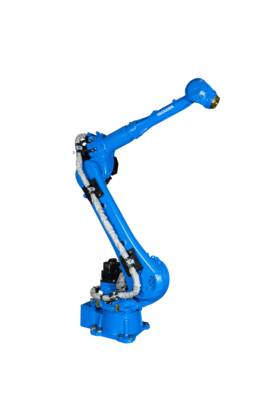

GP70L
Versatile Yaskawa Motoman GP series robots for handling, mounting, and more. 4-600kg payloads. High-performance 6-axis robots for diverse automation needs.
Overview
The Yaskawa Motoman GP series is a portfolio of multi-purpose, 6-axis industrial robots designed for a wide range of applications, including handling and mounting, with payload capacities spanning from 4 to 600 kg. A wide variety of payload/reach combinations, including versions with high IP protection rates, food-grade grease, or special purpose paint finishes, makes these GP Series robot models perfect candidates for many kinds of automation challenges, such as assembly, material handling, machine tending, material removal, and quality inspection.
Key Benefits of GP Series Robots:
- Increased Productivity: Automate repetitive tasks for faster throughput and higher efficiency.
- Enhanced Precision: Achieve consistent and accurate performance for improved product quality.
- Improved Safety: Reduce workplace hazards by automating dangerous or strenuous jobs.
- Maximum Flexibility: Adapt to changing production needs with versatile payload and reach options.
Technical Details
- Number of Axis
- 6
- Payload
- 70 kg
- Max Working Range
- 2723 mm
- Repeatability
- 0.05 mm
- Weight
- 650 kg
- Power Supply
- 5 kVA
- Maximum Speed S Axis
- 180 °/s
- Maximum Speed L Axis
- 123 °/s
- Maximum Speed U Axis
- 160 °/s
- Maximum Speed R Axis
- 230 °/s
- Maximum Speed B Axis
- 230 °/s
- Maximum Speed T Axis
- 350 °/s
- Mounting Options
- Floor
- Further Specifications
- x No
