More than 100 years committed to technical progress has made us the leading manufacturer in the fields of variable AC drives, servo drives, control technology and robotics.
External Drive Axis Packages
for MOTOMAN Robots with YRC1000 Controller
As a leading developer and manufacturer of robots, servomotors and controllers, Yaskawa is able to cover a very large part of the in-house value creation chain.
Not only are our robot motors perfectly tailored to our controllers but our external axes come from the same single source. Both the external axes and the robot axes can easily be controlled by our YRC1000 controller.
Experience the ease with which our components can be integrated and the way in which they blend harmoniously into your overall installation.
The cable package consists of power and signal cables, available in lengths of 3 – 30 m in 3 m increments.
Optionally with external axis disconnection for 1 – 3 external axes in YRC1000 controller.
Key Benefits
- Fully integrated additional robot axis
- Compatible with multi-synchronous operation
- Power categories from 0.1 up to 5.5 kW

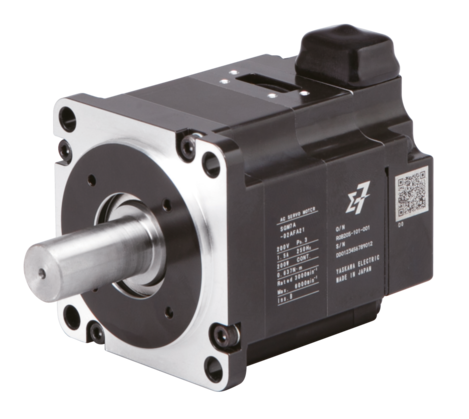

- Functional unit consisting of SGM7 servomotor, servo/control package as well as power and signal cables
- Up to 3 servo packages can be integrated in the YRC1000 controller in standard configuration
