MPL Series

MPL100II

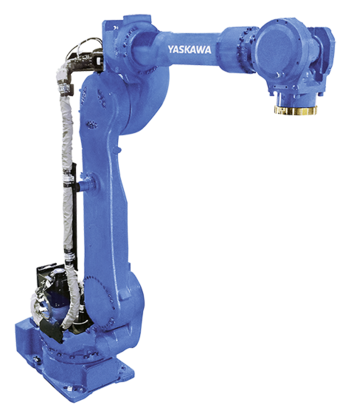

The MOTOMAN MPL100II is a 5-axis palletising and depalletising robot with a payload of 115 kg, a horizontal reach of 2 150 mm and a vertical reach of 3 149 mm.

Overview

The MOTOMAN MPL100II is a 5-axis palletising and depalletising robot with a payload of 115 kg, a horizontal reach of 2 150 mm and a vertical reach of 3 149 mm.

It has been developed for high speed palletising and depalletising Tasks in end-of-line packaging and warehouse applications.

Based on the reliable Sigma5 Servo Technology, this robot is easy to install and deploy.

Technical Details

  • Number of Axis
  • 5
  • Payload
  • 115 kg
  • Max Working Range
  • 2150 mm
  • Repeatability
  • 0.2 mm
  • Weight
  • 950 kg
  • Power Supply
  • 8 kVA
  • Maximum Speed S Axis
  • 125 °/s
  • Maximum Speed L Axis
  • 88 °/s
  • Maximum Speed U Axis
  • 125 °/s
  • Maximum Speed R Axis
  • x No
  • Maximum Speed B Axis
  • 175 °/s
  • Maximum Speed T Axis
  • 265 °/s
  • Mounting Options
  • Floor
  • Further Specifications
  • x No
