MPL Series

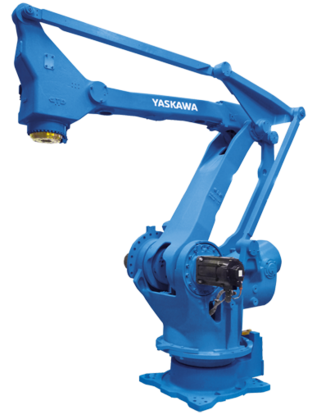

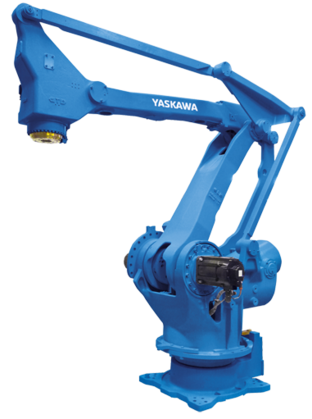

MPL300II
The 4-axis palletising and depalletising MOTOMAN MPL300 II robot has a maximum payload of 300 kg and a maximum working range of 3159mm.
Yaskawa South Africa Products Robots MPL Series MPL300II
Overview
The MOTOMAN MPL300II 4-axis palletising and depalletising robot has a maximum payload of 300 kg and a maximum working range of 3 159 mm.
Technical Details
- Number of Axis
- 4
- Payload
- 300 kg
- Max Working Range
- 3159 mm
- Repeatability
- 0.5 mm
- Weight
- 1820 kg
- Power Supply
- 9.5 kVA
- Maximum Speed S Axis
- 90 °/s
- Maximum Speed L Axis
- 100 °/s
- Maximum Speed U Axis
- 110 °/s
- Maximum Speed R Axis
- x No
- Maximum Speed B Axis
- x No
- Maximum Speed T Axis
- 195 °/s
- Mounting Options
- Floor
- Further Specifications
- x No
Downloads
Name | |||
Flyer Robot MPL300II
Flyer, datasheet, brochure, robot MPL300 Data sheet | English |
Data sheet | English | |
Flyer Robot MPL300II
Flyer, Datenblatt, Prospekt Roboter MPL300 Data sheet | German |
Data sheet | German | |
MPL300II 2D CAD/CAE | | CAD/CAE | ||
MPL300_3D CAD/CAE | | CAD/CAE |
