MPX Series

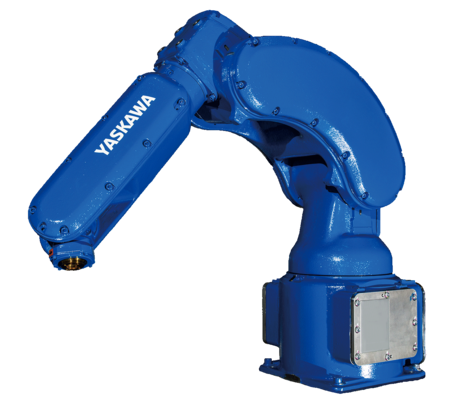

MPX1150

Compact 6-Axis Painting Robot for small Workpieces

Overview

The compact MOTOMAN MPX1150 robot was developed especially for painting of small workpieces. It provides a payload of 5 kg for mounting multiple guns and small bell models. Teh very compact design helps keeping the size of the paint booth small. The S/L axis is designed with no offset to enable installation of the manipulator closer to a work piece. The robot can be mounted on the floor, wall or ceiling and has three selectable access points for power cables.



Technical Details

  • Number of Axis
  • 6
  • Payload
  • 5 kg
  • Max Working Range
  • 727 mm
  • Repeatability
  • 0.02 mm
  • Weight
  • 57 kg
  • Power Supply
  • 1 kVA
  • Maximum Speed L Axis
  • x No
  • Maximum Speed U Axis
  • x No
  • Maximum Speed R Axis
  • x No
  • Maximum Speed B Axis
  • x No
  • Maximum Speed T Axis
  • x No
  • Mounting Options
  • Ceiling, Wall, Floor
  • Further Specifications
  • x No
Processing... Enter name, description, product or keywords Showing _START_ – _END_ / _TOTAL_ records filtered from _MAX_ records No records No records First Last Sort ascending Sort descending

Downloads

Name
Flyer Robot MPX1150
Small Robot optimized for Painting Data sheet | English
Data sheet English
Flyer Robot MPX1150
Kleinroboter speziell für Lackieranwendungen Data sheet | German
Data sheet German
MPX1150 2D CAD/CAE | CAD/CAE
MPX1150 3D CAD/CAE | CAD/CAE
