PL Series

PL190-100

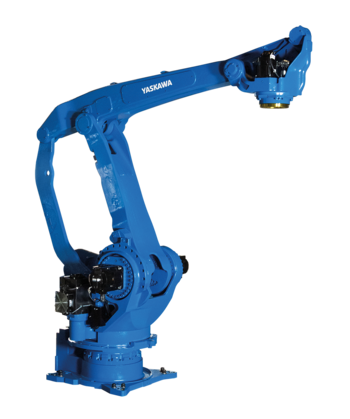

Part of the PL Series, the PL190 is a 4-axis robot with a maximum payload of 190 kg and a maximum working range of 3 159 mm.

Overview

With over 2000 cycles per hour, the fast and powerful 4-axis MOTOMAN PL190-100 robot offers top performance for box, carton and bag palletizing for end-of-line packaging and logistics applications.

The optimized kinematic structure of this robot provides better stability and higher max. payload capacity of 100 kg.

The superior working range with a maximum reach of 3,159 mm and an achievable stacking height of over 2,600 mm is perfect for all kinds of palletizing tasks.

Technical Details

  • Number of Axis
  • 4
  • Payload
  • 100 kg
  • Max Working Range
  • 3159 mm
  • Repeatability
  • 0.05 mm
  • Weight
  • 1680 kg
  • Power Supply
  • 9.5 kVA
  • Maximum Speed S Axis
  • 140 °/s
  • Maximum Speed L Axis
  • 145 °/s
  • Maximum Speed U Axis
  • 145 °/s
  • Maximum Speed T Axis
  • 420 °/s
  • Mounting Options
  • Floor
  • Further Specifications
  • x No
