PL Series

PL800

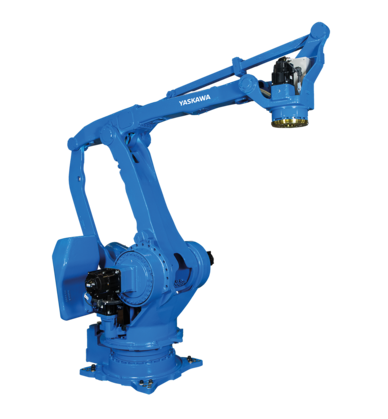

Part of the PL Series, the PL800 is a 4-axis robot with a maximum payload of 800 kg and a maximum working range of 3 159 mm.

Overview

The MOTOMAN PL800 is the most powerful 4-axis robot of the PL-series with a payload of 800 kg. This palletizer offers high performance for box, carton and pack palletizing in versatile end-of-line packaging and logistics applications.

Its large working range with a maximum reach of 3159 mm and an achievable stacking height of over 2624 mm allows versatile use across all palletizing applications.

Technical Details

  • Number of Axis
  • 4
  • Payload
  • 800 kg
  • Max Working Range
  • 3159 mm
  • Repeatability
  • 0.05 mm
  • Weight
  • 2560 kg
  • Power Supply
  • 8 kVA
  • Maximum Speed S Axis
  • 65 °/s
  • Maximum Speed L Axis
  • 65 °/s
  • Maximum Speed U Axis
  • 65 °/s
  • Maximum Speed T Axis
  • 125 °/s
  • Mounting Options
  • Floor
  • Further Specifications
  • x No
