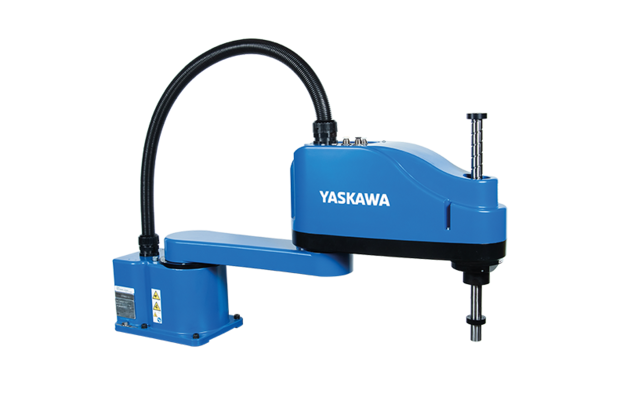

MOTOMAN SG Series – High-Speed SCARA Robots
MOTOMAN SG Series – High-Speed SCARA Robots
High-speed, precise SCARA robots for pick & place, packaging, and part handling. Fast to deploy, flexible, and built for evolving production needs.
Overview
The MOTOMAN SG Series SCARA robots deliver exceptional speed, accuracy, and reliability for small-part pick & place, part sortation, and high-throughput handling applications. Engineered for rapid deployment, these robots are easy to integrate and can be quickly redeployed as production needs evolve. Their compact design and fast cycle times make them an ideal solution for electronics, consumer goods, and light assembly industries.
Designed for precision-driven manufacturing environments, the SG Series SCARA robots combine high-speed performance with flexible integration capabilities. Their rigid arm structure and advanced motion control enable cycle times of just fractions of a second, ensuring maximum productivity in pick & place, packaging, and part transfer operations.
The SG Series is compact, lightweight, and adaptable, making it suitable for both standalone workstations and fully automated production lines. With simple programming and a flexible mounting design, these robots are an ideal choice for manufacturers looking to optimise throughput, reduce downtime, and maintain consistent product quality.
Technical Details
- Number of Axis
- 4
- Payload
- 6 kg
- Max Working Range
- 650 mm
- Repeatability
- 0.01 mm
- Weight
- 19 kg
- Power Supply
- 1 kVA
- Maximum Speed S Axis
- 450 °/s
- Maximum Speed L Axis
- 730 °/s
- Maximum Speed U Axis
- 1300 mm/s
- Maximum Speed R Axis
- 2500 °/s
- Maximum Speed B Axis
- x No
- Maximum Speed T Axis
- x No
- Mounting Options
- Floor
- Further Specifications
- x No
Downloads
| Name | |||
| Flyer Robot Scara SG650 Data sheet | English | Data sheet | English | |
| Flyer Robot Scara SG650 Data sheet | German | Data sheet | German | |
| SG650 2D CAD/CAE | | CAD/CAE | ||
| SG650 3D CAD/CAE | | CAD/CAE | ||
| Flyer Robot Scara SG650 Data sheet | French | Data sheet | French |
