AR Series

AR3120

The six-axis MOTOMAN AR3120 robot is the perfect candidate for arc welding or cutting jobs which require a very long reach of more than 3 meters.

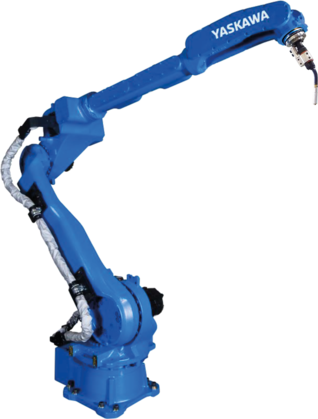

6-osiowy robot MOTOMAN AR3120 | © Yaskawa Polska

Overview

The six-axis MOTOMAN AR3120 robot is the perfect candidate for arc welding or cutting jobs which require a very long reach of more than 3 meters - e.g. very large, flat or deep workpieces. It combines precision, world-leading path performance and functionality in a way which made MOTOMAN welding robots superior over the last decades. The AR3120 allows you to achieve optimal welding results even under extremely difficult conditions.

The bended arm design and hollow arm structure allows integrated torch cabling and helps avoiding collisions.

Technical Details

  • Number of Axis
  • 6
  • Payload
  • 20 kg
  • Max Working Range
  • 3124 mm
  • Repeatability
  • 0.07 mm
  • Weight
  • 560 kg
  • Power Supply
  • 2 kVA
  • Maximum Speed S Axis
  • 180 °/s
  • Maximum Speed L Axis
  • 180 °/s
  • Maximum Speed U Axis
  • 180 °/s
  • Maximum Speed R Axis
  • 400 °/s
  • Maximum Speed B Axis
  • 430 °/s
  • Maximum Speed T Axis
  • 630 °/s
  • Mounting Options
  • Ceiling, Wall, Floor
  • Further Specifications
  • x No
