GP Series
GP120RL

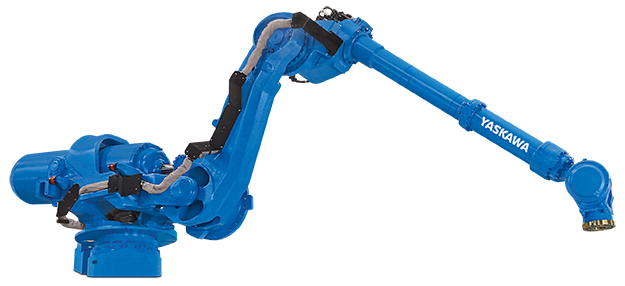

The flexible, shelf-mounted GP120RL robot has a 120kg payload and a superb reach of 4 meters, an ideal candidate for machine and press brake tending, and more.
Overview
The flexible, shelf-mounted MOTOMAN GP120RL robot provides a superb reach of 4 meters (!), a payload of 120 kg and an outstanding repeatability of better than +/- 0.2 mm. A streamlined upper arm provides easy access to parts in confined spaces. As being a shelf-type robot, the motion range is extended for working below the robot base level, allowing to the robot to be installed on a raised steel structure to save floor space.
The MOTOMAN GP120RL is the ideal candidate for (multi) machine tending from above, press brake tending and loading/unloading long or flat panels to machines with large loading areas. In many applications, this robot helps avoid the installation of robot tracks or gantries.
Our customers are preferring this robot for Machine Tending (large CNC and Injection Moulding Machines), Wood & Furniture Handling and Packaging, Press Tending and Handling Applications in Automotive and Agricultural or Construction Machinery.
Technical Details
- Number of Axis
- 6
- Payload
- 120 kg
- Max Working Range
- 4004 mm
- Repeatability
- 0.2 mm
- Weight
- 1830 kg
- Power Supply
- 2 kVA
- Maximum Speed S Axis
- 90 °/s
- Maximum Speed L Axis
- 85 °/s
- Maximum Speed U Axis
- 85 °/s
- Maximum Speed R Axis
- 175 °/s
- Maximum Speed B Axis
- 150 °/s
- Maximum Speed T Axis
- 240 °/s
- Mounting Options
- Shelf-Mounted
- Further Specifications
- x No
