GP Series

GP400

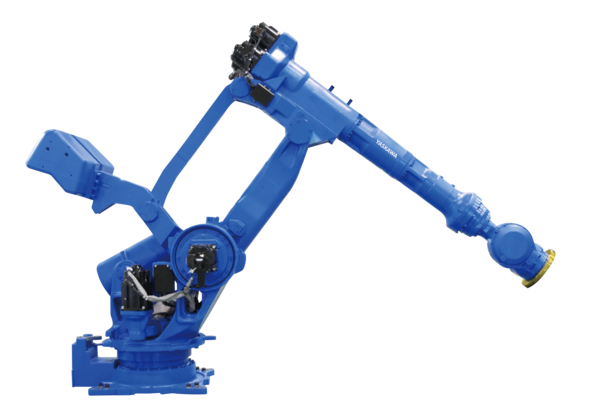

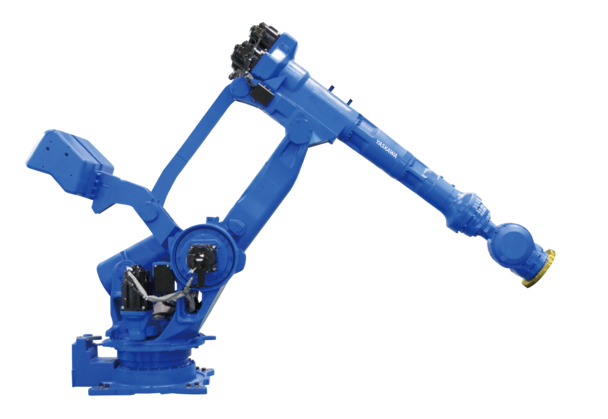

The powerful MOTOMAN GP400 handling robot has a payload of 400 kg and a maximum reach of 2,942 mm, a smart choice to fulfil a variety of heavy-payload needs.

Overview

The Motoman GP series is a portfolio of multi-purpose, 6-axis industrial robots in a payload range between 4 to 600 kg.

A wide variety of payload/reach combinations, including versions with high IP protection rates, food-grade grease or special purpose paint finishes, makes those GP Series robot models perfect candidates for many kinds of automation challenges, such as assembly, material handling, machine tending, material removal or quality inspection.

Technical Details

  • Number of Axis
  • 6
  • Payload
  • 400 kg
  • Max Working Range
  • 2942 mm
  • Repeatability
  • 0.1 mm
  • Weight
  • 2840 kg
  • Power Supply
  • 7 kVA
  • Maximum Speed S Axis
  • 102 °/s
  • Maximum Speed L Axis
  • 97 °/s
  • Maximum Speed U Axis
  • 97 °/s
  • Maximum Speed R Axis
  • 80 °/s
  • Maximum Speed B Axis
  • 80 °/s
  • Maximum Speed T Axis
  • 172 °/s
  • Mounting Options
  • Floor
  • Further Specifications
  • x No
