Yaskawa Motoman GP Series Robots: Handling & Mounting
GP8

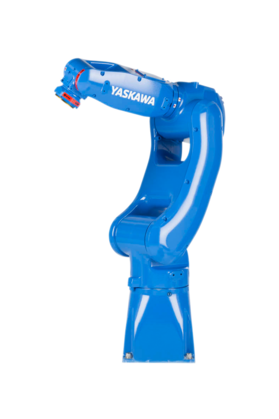

The MOTOMAN GP8 is an extremely agile, compact and universal robot with a payload of 8 kg and a maximum reach of 727 mm, suited for a variety of applications.
Overview

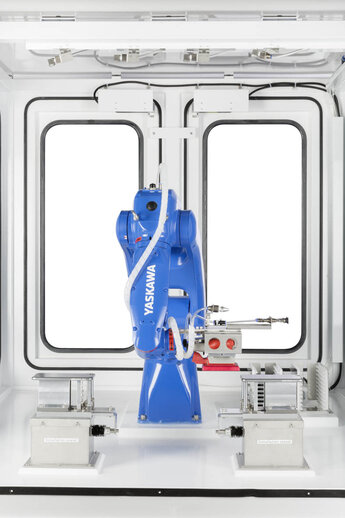

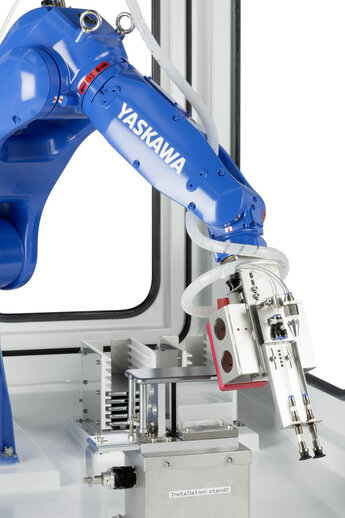

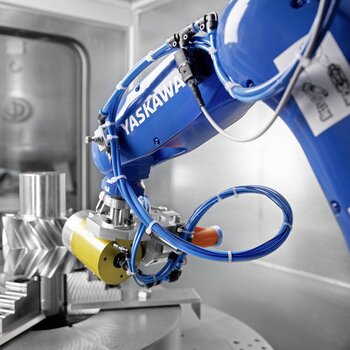

The MOTOMAN GP8, one of our most successful robot models ever, is an extremely agile, compact and universal robot with 8 kg payload, 727 mm reach and superior repeatability of +/- 0.01 mm. Our customers appreciate the performance of the GP8 in all kind of handling, assembly, pick&place and quality testing applications.
High IP 67 rating (dust and liquid protection) is standard, allowing the robot to work in harsh environments. The optional anti-corrosive coating (ACC) of the GP8 protects the robot in corrosive atmosphere such as acids, alkali and vapors. A GP8 food grade grease version and CR5 cleanroom class version is also available.
The GP7 is a member of our Plug&Play Initiative Smart Series!
- Increased Productivity: Automate repetitive tasks for faster throughput and higher efficiency.
- Enhanced Precision: Achieve consistent and accurate performance for improved product quality.
- Improved Safety: Reduce workplace hazards by automating dangerous or strenuous jobs.
- Maximum Flexibility: Adapt to changing production needs with versatile payload and reach options.
Technical Details
- Number of Axis
- 6
- Payload
- 8 kg
- Max Working Range
- 727 mm
- Repeatability
- 0.01 mm
- Weight
- 35 kg
- Power Supply
- 1 kVA
- Maximum Speed S Axis
- 455 °/s
- Maximum Speed L Axis
- 385 °/s
- Maximum Speed U Axis
- 520 °/s
- Maximum Speed R Axis
- 550 °/s
- Maximum Speed B Axis
- 550 °/s
- Maximum Speed T Axis
- 1000 °/s
- Mounting Options
- Ceiling, Wall, Floor
- Further Specifications
- x No
